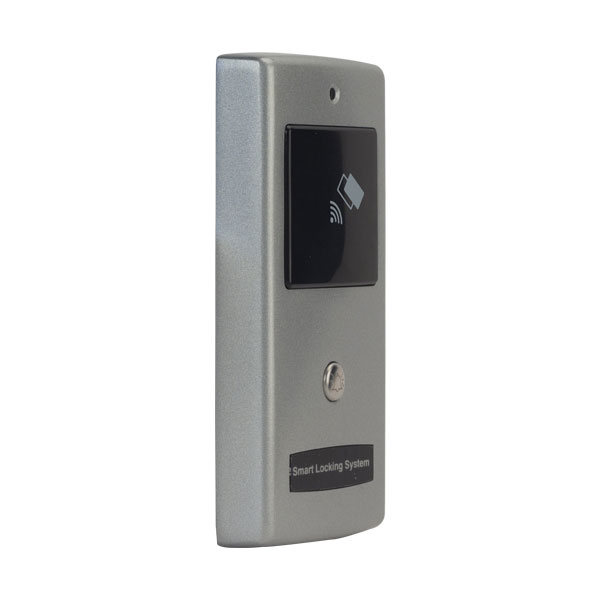

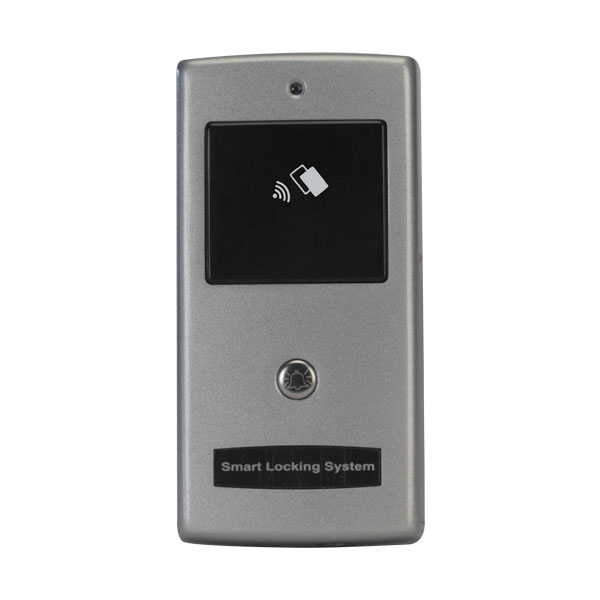

Door Control Unit

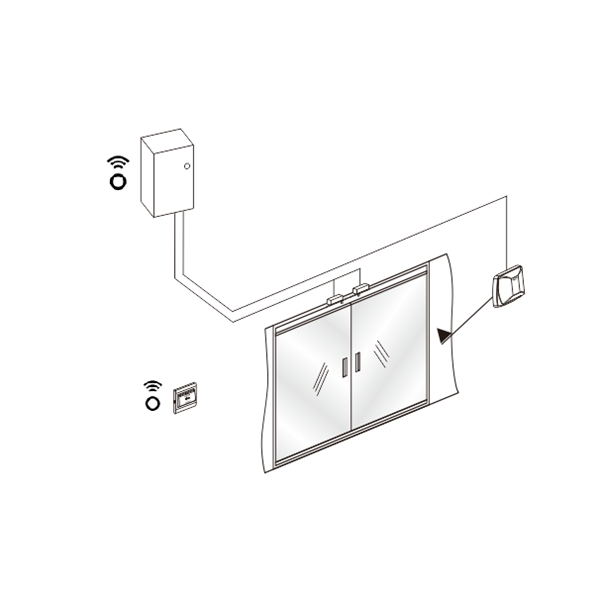

The Be-Tech Door Control Unit is the perfect solution to provide access control on common doors, such as parking barriers, health centers, gym room, conference room, staff entrances, guest night entrances and more, our Door Control Unit is fully compatible with Be-Tech electronic locking systems and provides better guest experience for your hotels.

Electrical Specifications:

DCU Model MJM 2700M
Supply Voltage 18VDC 12VDC
Supply Current 6A 2A
Load current, output 1 Max. 3A @ 12VDC Max. 3A @ 12VDC Resistive load
Load current, output 2 Max. 3A @ 12VDC Resistive load

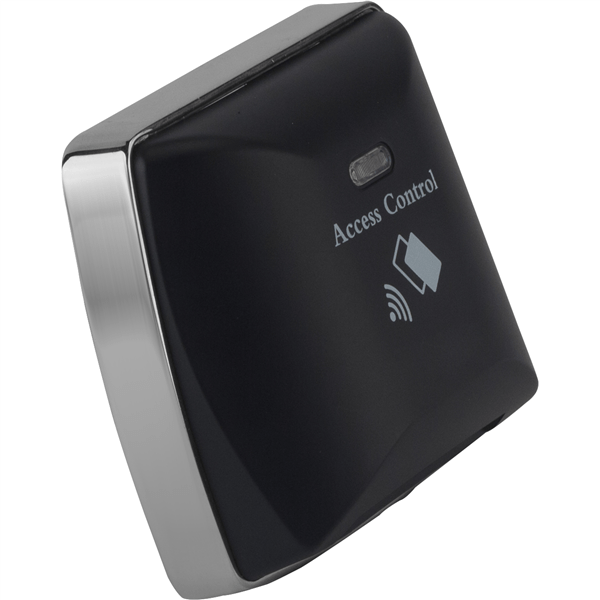

  • Modern reader design in matte black color(for MJM model)
  • Compatible with twins-reader mounting on passage door both side (optional to use)..
  • Snap-on mounting design easy to fix for surface mounted installation.

  • Inward wireless ‘Door Exit’ switch is available to simple “out and go” for hotel guests.

  • Compatible with BIS Hotel and BIS Locker systems.
  • Can work with Electronic dropbolt, Electronic Magnet lock, Electronic strike.

Technical data:

Each complete unit, supplied individually packed, consists of:

Model MJM:

1)Door Control Unit with reader.

2)Control box.

3)External Power supply.

4)Inward wireless Door Exit switch.

Model 2700M:

1)Door Control Unit with reader.

2)External power supply.

3)Inward wireless Door Exit switch.

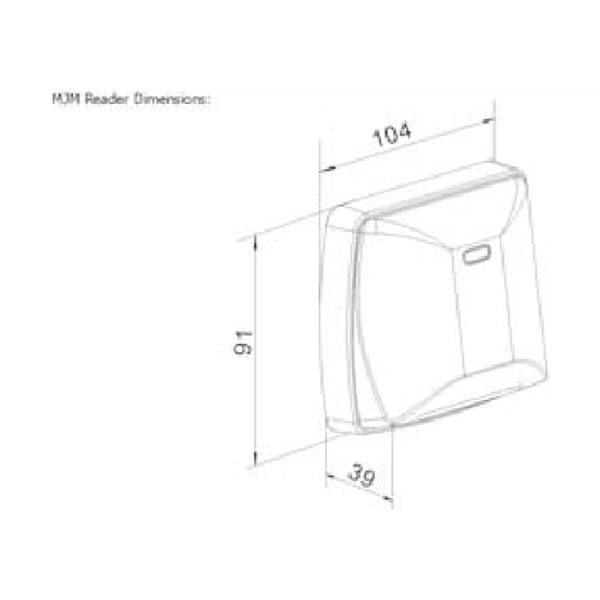

Height: 91 mm / 3.58 inch

Width: 104 mm / 4.09 inch

Depth: 39 mm/ 1.54 inch

Relay box:

Height: 310 mm / 12.2 inch

Width: 160 mm / 6.3 inch

Depth: 72 mm / 2.83 inch

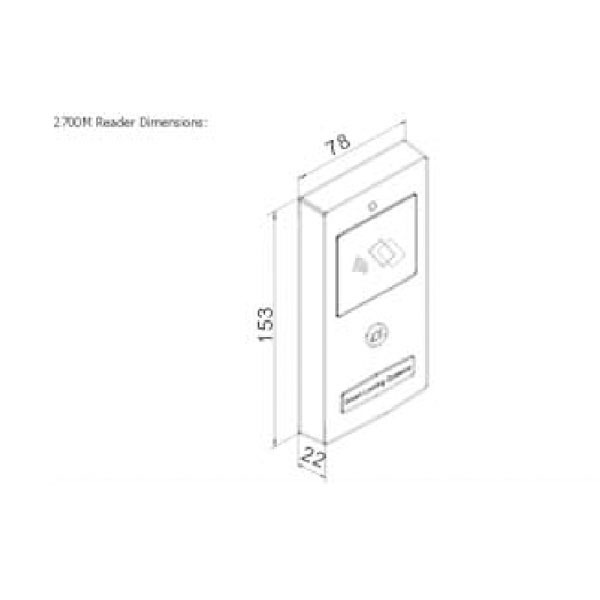

Height: 153 mm / 6.02 inch

Width: 78 mm / 3.07 inch

Depth: 22 mm / 0.87 inch



DownloadDoor Control Unit_Datasheet_English_Mar.10_2020
171 KB

DownloadElectronic Hotel Locking System_Brochure_English_2020JULY
